Phoenix

Panelized Kit Home

  • Total Living Space: 4,482 ft² (416 m²)
  • Bedrooms: 6
  • Bathrooms: 4
  • Garage: 3 Car
  • Ceiling Height: 10’
  • Covered Porch: 205 ft² (19 m²)
  • Home Plan Cost: Included (November 2024)
  • Building Kit Cost: $233,146 (November 2024)
  • Style: 1 Story
  • Minimum Payment: $8,200

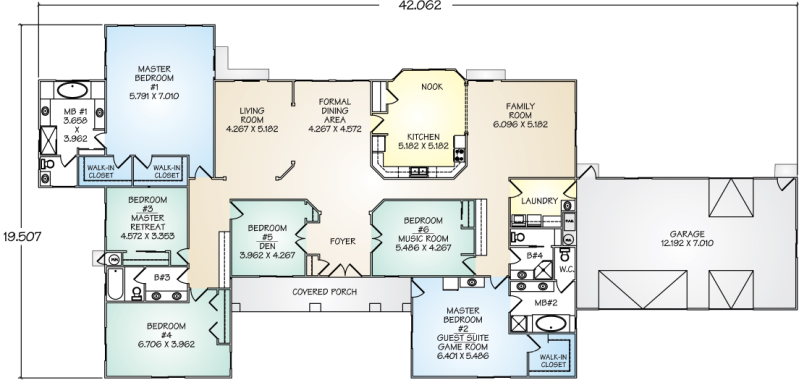

Enlarge Download Modify Metric

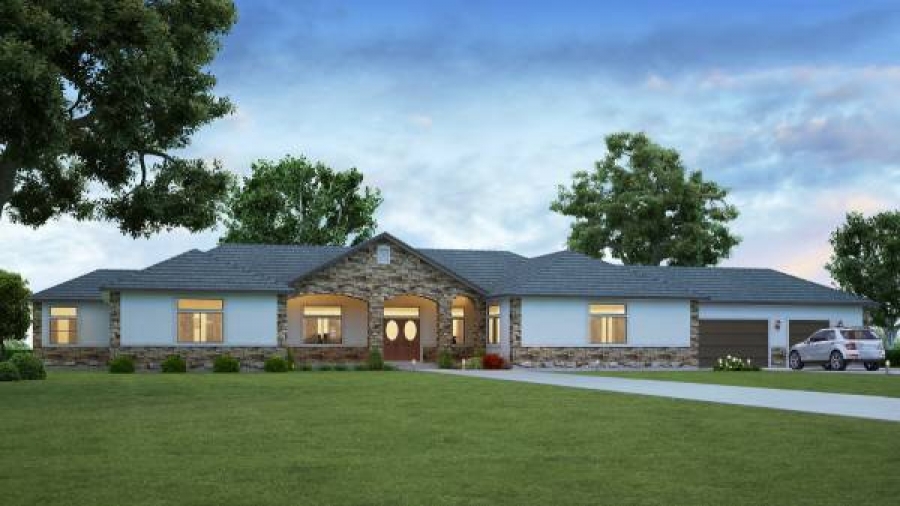

The Phoenix panelized kit home is spacious and flexible in design. A second master suite with private entry provides a retreat for guests or house members; it can also serve as a media, game, or hobby room. Any of the additional bedrooms can also be personalized as a den, study, music room, or master retreat. The expansive living and formal dining area provide an extensive view of the backyard through large windows. Volume and space are emphasized with ten-foot ceilings throughout the Phoenix. The large kitchen and nook open to the family room, as well as through a door to the formal dining area. The Phoenix has four full-size baths and two separate water heater closets. The three-car garage has an additional drive-through access door to the backyard and can easily be used as a hobby or work area with plenty of room left for storage.

Download Modify
  • Total Liv.: 4,482 ft² (416 m²)
  • Bedrooms: 6
  • Bathrooms: 4
  • Garage: 3 Car
  • Ceiling Height: 10’
  • Covered Porch: 205 ft² (19 m²)
  • Home Plan Cost: Included (November 2024)
  • Building Kit Cost: $233,146 (November 2024) (November 2024)
  • Style: 1 Story
  • Minimum Payment: $8,200

Click Here To See Minimum Payment Requirements

Minimum Payment Requirements

  Minimum Initial
Design Name  Package Payment
Astoria $6,500
Auburn Chalet $5,300
Austin $3,900
Avalon $6,700
Bodega $5,000
Borrego $6,500
Brentwood $6,500
Camino $3,800
El Dorado $8,300
El Grande Barn $3,700
Emerald $7,000
Garage A $2,000
Garage B $2,000
Huntington $5,100
Laguna $5,400
Lakeport $5,000
Lake View $3,800
Manchester $6,800
Maywood $3,700
Meadow View $3,700
Mendocino $6,900
Montecito $6,600
Murrieta $6,500
Napa $7,200
New Haven $5,800
Newport $4,800
Olympia $5,200
Phoenix $8,200
Plymouth $5,200
Portola $3,800
Riverbend $5,200
Rockport $7,800
Santa Fe $5,000
San Rafael $6,200
Scottsdale $6,800
Silverton $6,500
Sonoma $3,400
Springfield $6,800
Westlake $5,400
Woodbridge $6,100
Back to Modular, Prefab, Family-Size One-Story Home Kits (2000-4500 ft2)

Tools

The Phoenix panelized kit home is spacious and flexible in design. A second master suite with private entry provides a retreat for guests or house members; it can also serve as a media, game, or hobby room. Any of the additional bedrooms can also be personalized as a den, study, music room, or master retreat. The expansive living and formal dining area provide an extensive view of the backyard through large windows. Volume and space are emphasized with ten-foot ceilings throughout the Phoenix. The large kitchen and nook open to the family room, as well as through a door to the formal dining area. The Phoenix has four full-size baths and two separate water heater closets. The three-car garage has an additional drive-through access door to the backyard and can easily be used as a hobby or work area with plenty of room left for storage.

Want More Information?

Click Here To See Minimum Payment Requirements

Minimum Payment Requirements

  Minimum Initial
Design Name  Package Payment
Astoria $6,500
Auburn Chalet $5,300
Austin $3,900
Avalon $6,700
Bodega $5,000
Borrego $6,500
Brentwood $6,500
Camino $3,800
El Dorado $8,300
El Grande Barn $3,700
Emerald $7,000
Garage A $2,000
Garage B $2,000
Huntington $5,100
Laguna $5,400
Lakeport $5,000
Lake View $3,800
Manchester $6,800
Maywood $3,700
Meadow View $3,700
Mendocino $6,900
Montecito $6,600
Murrieta $6,500
Napa $7,200
New Haven $5,800
Newport $4,800
Olympia $5,200
Phoenix $8,200
Plymouth $5,200
Portola $3,800
Riverbend $5,200
Rockport $7,800
Santa Fe $5,000
San Rafael $6,200
Scottsdale $6,800
Silverton $6,500
Sonoma $3,400
Springfield $6,800
Westlake $5,400
Woodbridge $6,100
Purchase Terms & Conditions

Purchase Terms & Conditions

Refund Policy: All Sales are final and Returns and not accepted.

Payment: Credit Card, Check or Wire Transfer. The Initial Minimum Package Payment can be paid by Credit Card. All further payment must be made by check or wire transfer.

Pre-Engineered Construction Plans are included with the home package and will be delivered within 2-4 weeks of initial cleared minimum deposit. Subject to specific building site requirements and any potential requested changes to the Construction plan. Changes to the Construction Plan will be at an additional charge.

Pre-Engineered Home Plansare designed as follows:

a. Complete set of plansdrawn to the California Building Code (CBC), as interpreted byElk Grove, CA including the foundation design but exclude the Plot Plan, EnergyCalculations, Fire Sprinkler Design, Heating & Air Duct Designor anyothercity/county requirements. Please contact us at the phone number at the top of this page for details on getting the excluded items completed.

b. Plans areengineered forlight-weight tile, PV solar panels, nosnow load, basic 110mphwind, Exposure"C" and SeismicZone D. Greater design loads available by quote only.

c. 4 sets of plans, including 3 originalengineered stampedsetsand 1copy. If needed, additional plan sets can be purchased from PMHI. A local plan duplication service can duplicate the plan for the purpose of building this one (1) home.

d. Roof Truss plan and Truss calculations.

e. For Plan changes due to California Fire Hazard Severity Zone please add $ 180.

f. PMHI will be responsible for Building Department plan check questions relating to its work only. Generally speaking PMHI will respond to the plan check questions at no additional change. However, if the plan check requires significant plan / engineering changes due to issues beyond its control there maybe additional charges.

g. Plandrafting & engineering costsmay increase as a result of local building ordinancesor planmodifications.

If you have further plan modifications you would like to make, please call us at the phone number listed at this top page.

Home Package Delivery: After completing the local required building permit process, a package can be delivered within 6 - 12 weeks of receiving cleared payment, subject to building material availabilities and weather conditions.

Download Free Plan Review Set

After you complete the Free Plan Review set request form we'll send you an electronic version of a fully dimensioned floor plan and all 4 exterior elevations by e-mail. In addition to viewing it on your computer you are welcome to have a local print service print the pages out full sized (commonly 2' X 36') to help with the following:

Interior & Exterior Space Planning
Measure for furniture placement and even stake out the
building footprint for the ideal placement on your building site.

All Four Exterior Elevations
See what all four sides of the building looks like.

Building Cost Estimates
With our fully dimensioned plan you can get much of your interior finish
picked out and arrive at an anticipated budget for these items.

Download Free Plan Review Set

After you complete the Free Plan Review set request form we'll send you an electronic version of a fully dimensioned floor plan and all 4 exterior elevations by e-mail. In addition to viewing it on your computer you are welcome to have a local print service print the pages out full sized (commonly 2' X 36') to help with the following:

Interior & Exterior Space Planning
Measure for furniture placement and even stake out the
building footprint for the ideal placement on your building site.

All Four Exterior Elevations
See what all four sides of the building looks like.

Building Cost Estimates
With our fully dimensioned plan you can get much of your interior finish
picked out and arrive at an anticipated budget for these items.

  • 1) Complete set of plans drawn to the California Building Code (CBC), as interpreted by Elk Grove, CA excluding Plot Plan and Energy Calculations. (Other States are available additional costs may apply)
  • 2) Plans are engineered for light-weight tile and no snow and/or maximum of 85 mph wind. Exposure "C" and/or Seismic Zone D. Greater design loads by quote only.
  • 3) 4 sets of plans, including 3 original engineered stamped sets and 1 copy.
  • 4) Truss Calculations.
  • 5) Plan changes due to California Fire Hazard Severity Zone add $180 to Base Plan Set price.
  • 6) Plan engineering costs may increase subject to local building ordinance.
  • 7) Home Plans are only sold as part of our building system.
